Matplotlib Colorbar Moves Second X Axis

I'm trying to add a second x axis to the top of a plot using twiny. If I make a simple scatter plot with no colorbar, the top x axis is correctly aligned with the bottom x axis (MW

Solution 1:

You can have the colorbar 'steal' space from more than one ax

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import matplotlib.gridspec as gridspec

X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig = plt.figure()
gs = gridspec.GridSpec(1, 2)
ax1 = plt.subplot(gs[1])
ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)
plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z, cmap='viridis')
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

# Colorbar.
cbar = plt.colorbar(SC, ax=[ax1, ax2])
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

plt.show()

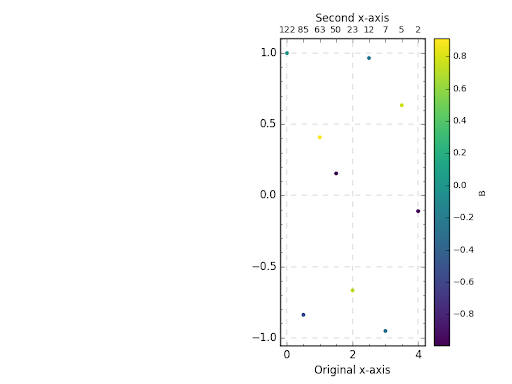

which I think will un-block your use case.

Limits are a bit different because I am sitting on the current master branch.

If you need to use tight_layout something like this (which requires some tuning on padding etc):

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec


X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig = plt.figure()
gs = gridspec.GridSpec(1, 2)
right_gs = gridspec.GridSpecFromSubplotSpec(1, 2, width_ratios=[30, 1], subplot_spec=gs[1], wspace=0.05)

ax1 = fig.add_subplot(right_gs[0])
color_axis = fig.add_subplot(right_gs[1])



ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)
plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z, cmap='viridis')
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

cbar = fig.colorbar(SC, cax=color_axis)
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

fig.tight_layout()
plt.show()

Solution 2:

This feels like kind of a hack. But by forcing the figure to draw. And then getting the ax1 position. you can set ax2 to the same and redraw the figure.

....
cbar.ax.tick_params(labelsize=10)

fig.canvas.draw()
ax2.set_position(ax1.get_position())

plt.show()
