Generating Legend For Geopandas Plot

I am plotting a shape file with Geopandas. Additionally im Adding Points of a dataframe (see picture). Now im trying to add a legend (at the right of the original plot) for the poi

Solution 1:

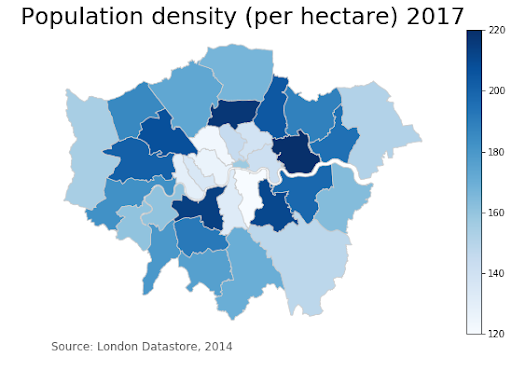

I followed the example that you referred to and this is the concise version. It would have been better if you could have shared a bit of your dataset 'df'. It seems that you want to have a colorbar which fig.colorbar generates.

import pandas as pd
import numpy as np
import matplotlib.pyplotas plt
import geopandas as gpd
import test
from shapely.geometryimportPoint

df = pd.read_csv('london-borough-profiles.csv', header=0)
df = df[['Area name','Population density (per hectare) 2017']]

fp = 'London_Borough_Excluding_MHW.shp'
map_df = gpd.read_file(fp)
gdf = map_df.set_index('NAME').join(df.set_index('Area name'))

variable = 'Population density (per hectare) 2017'
vmin, vmax = 120, 220
fig, ax = plt.subplots(1, figsize=(10, 6))
gdf.plot(column=variable, cmap='Blues', ax = ax, linewidth=0.8, edgecolor='0.8')
ax.axis('off')
ax.set_title('Population density (per hectare) 2017', fontdict={'fontsize': '25', 'fontweight' : '3'})
ax.annotate('Source: London Datastore, 2014',xy=(0.1, .08),  xycoords='figure fraction', horizontalalignment='left', verticalalignment='top', fontsize=12, color='#555555')
sm = plt.cm.ScalarMappable(cmap='Blues', norm=plt.Normalize(vmin=vmin, vmax=vmax))
sm._A = []
cbar = fig.colorbar(sm)

Solution 2:

You can add this into your solution and for this you have to set label for each plot

plt.legend()
